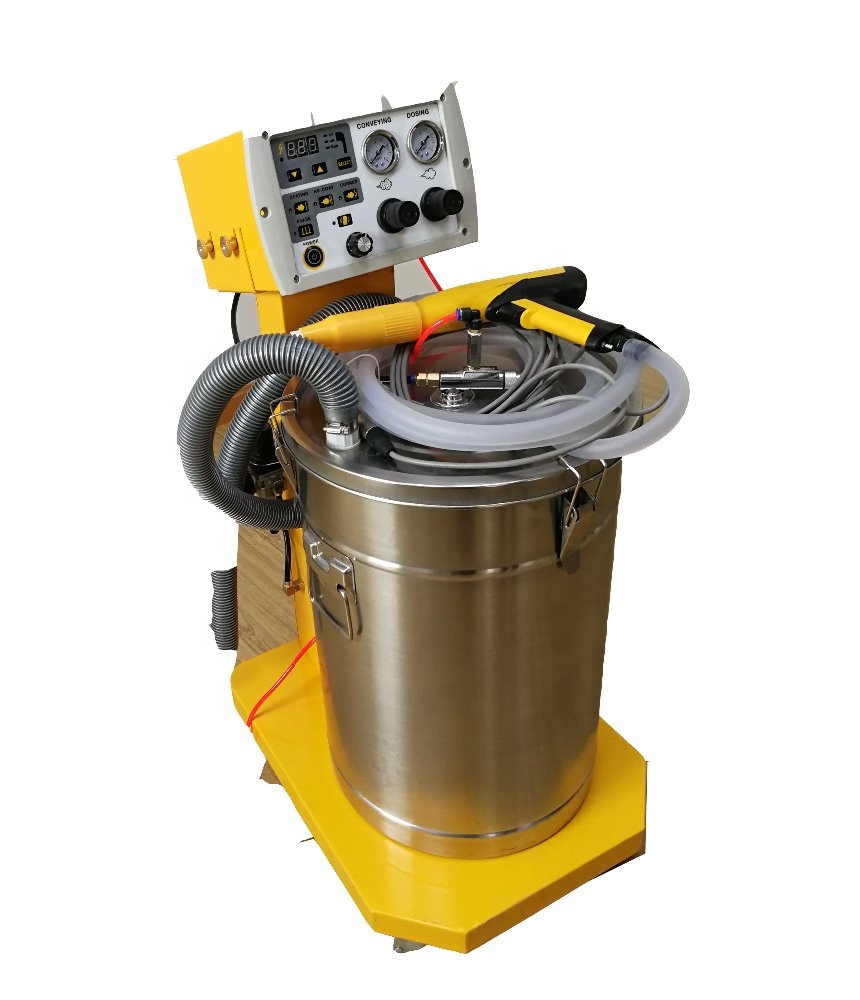

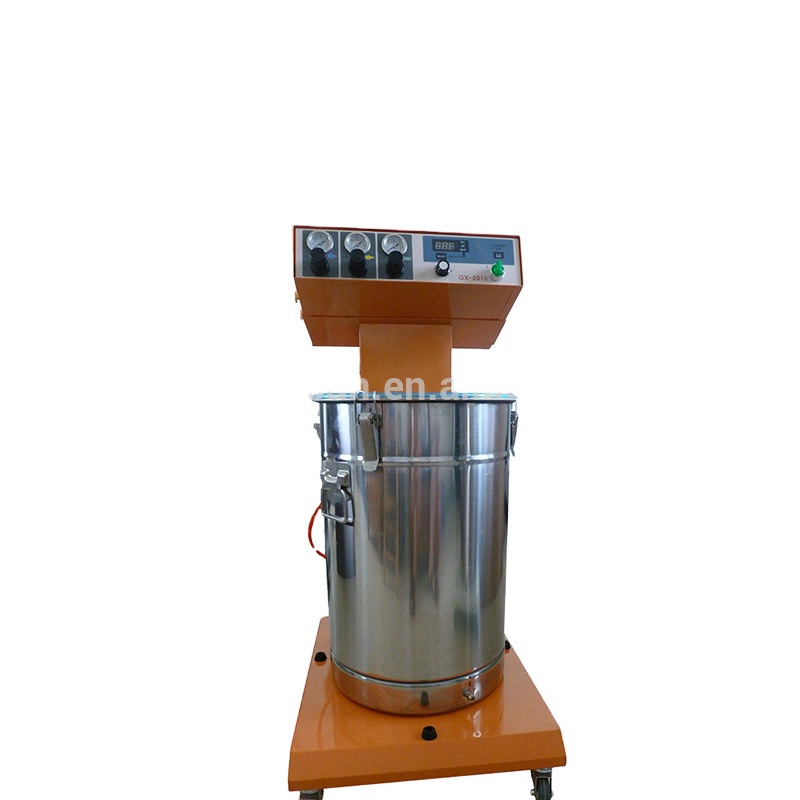

User-Friendly WL-03 Electrostatic Powder Painting Machine for Customers Local Voltage

Name: UserFriendly WL03 Electrostatic Powder Painting Machine for Customers Local Voltage
Brand: huaxiang
Price: 395.00 USD

User-Friendly WL-03 Electrostatic Powder Painting Machine for Customers Local Voltage Manufactures

Place of Origin : Zhejiang, China

Brand Name : huaxiang

Price : $395.00/pieces >=1 pieces

MOQ : 1

Type : robotic paint machine

Substrate : Steel

Condition : New

Machine Type : powder coating plant, Coating Equipment

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Motor

Coating : Powder Coating

Voltage : Customers Local Voltage

Power : Electric/ 6.5kw

Warranty : 1 Year

Key Selling Points : Easy to Operate

Applicable Industries : Machinery Repair Shops

Showroom Location : None

Weight (KG) : 45

Product name : Powder Coating Machine

Solenoid Voltage : AC220V

Solenoid Valve : DC15V

Output Voltage : 15-100kv

Single package size : 750mm*750mm*800mm

Contact Now

User-Friendly WL-03 Electrostatic Powder Painting Machine for Customers Local Voltage

WL-03 Electrostatic Powder Painting Equipments

Electrostatic Spraying:
- The spray gun generates a high voltage to create an electrostatic field, charging the powder coating particles.
- The charged powder particles are attracted to the grounded workpiece surface, achieving uniform coverage of the coating.
Coating Process:
- The powder coating is expelled from the spray gun, forming a mist, and the powder particles are quickly adhered to the workpiece due to electrostatic attraction.
- The electrostatic force allows for a thicker and more uniform coating on the surface of the workpiece.
Curing:
- After the coating is complete, the workpiece is placed in an oven for heating, where the powder coating melts and cures at high temperatures, forming a hard and wear-resistant layer.

Features

Environmentally Friendly: Electrostatic powder coating does not use solvents, reducing the emission of volatile organic compounds (VOCs).
Uniform Coating: The electrostatic spraying process achieves consistent coating thickness, minimizing material waste.
Strong Adhesion: The electrostatic effect enhances the adhesion of the powder to the surface of the workpiece, improving the durability of the coating.
Variety: Applicable to various materials (such as steel and aluminum alloys), and the powder coatings come in diverse colors and finishes.

Application Fields

Electrostatic powder coating is widely used in the automotive, appliance, furniture, and construction industries, suitable for surface coating of various metal products.

No	Item	Data
1	Voltage	110v/220v
2	Frenquency	50/60HZ
3	Input power	50W
4	Max. output current	200ua
5	Output power voltage	0-100kv
6	Input Air pressure	0.3-0.6Mpa
7	Polarity	Negative
8	Gun weight	480g
